When it comes to purchasing reliable industrial valves, choosing a trusted supplier is just as important as selecting the right product. Lakshmi Pipe Store is recognized as one of the best Kartar Valves suppliers in Delhi, offering a wide range of genuine industrial valves for commercial, residential, and industrial applications.
With years of experience in the piping and valve industry, we supply high-quality Kartar Valves that deliver excellent durability, smooth operation, leak-proof performance, and long service life. Whether you need valves for water supply systems, fire fighting, plumbing, HVAC, oil & gas, chemical plants, or industrial pipelines, we provide reliable products at competitive prices.
Check Out the: KARTAR VALVES PRICE LIST 2026
Click for Best Prices
Complete Kartar Valves Product Range Available at Lakshmi Pipe Store
Lakshmi Pipe Store stocks Kartar’s full industrial valve catalogue. Below is the detailed, code-wise breakdown of every product family, sourced directly from Kartar’s official catalogue.
Sluice (Gate) Valves — IS:14846
Kartar Sluice Valves are built for reliable on/off isolation across water supply, irrigation, and fire main networks. Available in Non-Rising Stem (K501–K504), OS&Y Rising Stem (K505, K506), and Extra Strong PN20 (K504-X, K504-XX) variants.
- Sizes: 50NB – 600NB
- ISI Certified — CM/L-9301261
- Accessories: Gear, Electric Actuator, Locking Arrangement, Position Indicator

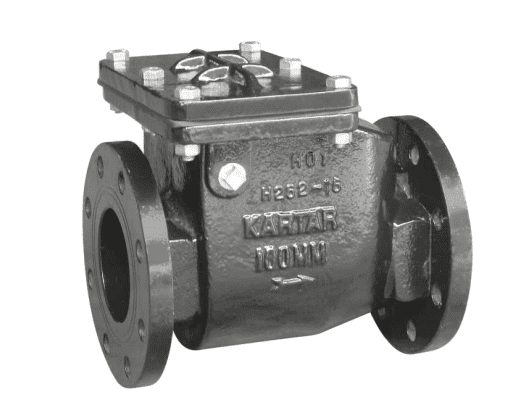

Non-Return (Reflux) Valves — IS:5312
Swing-check design valves for Water, Oil, and Air applications, preventing reverse flow and protecting pumps and pipeline systems. Available with Rubber and GM (Gun Metal) seat options.
- PN Rating: PN 1.0, PN 1.6, PN 2.0
- Sizes: 50NB – 600NB
- ISI Certified — CM/L-9157381

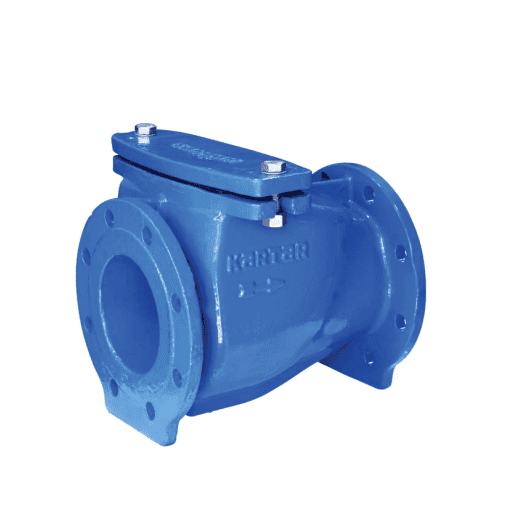

D.I. Non-Return (Reflux) Valve
Ductile Iron version with fusion-bonded epoxy coating (RAL5005), suited for drinking water, sewage, and oil applications where corrosion resistance matters.
- PN Rating: PN 1.6, PN 2.0
- Sizes: 80NB – 200NB
- Application Temperature: ≤ 80°C

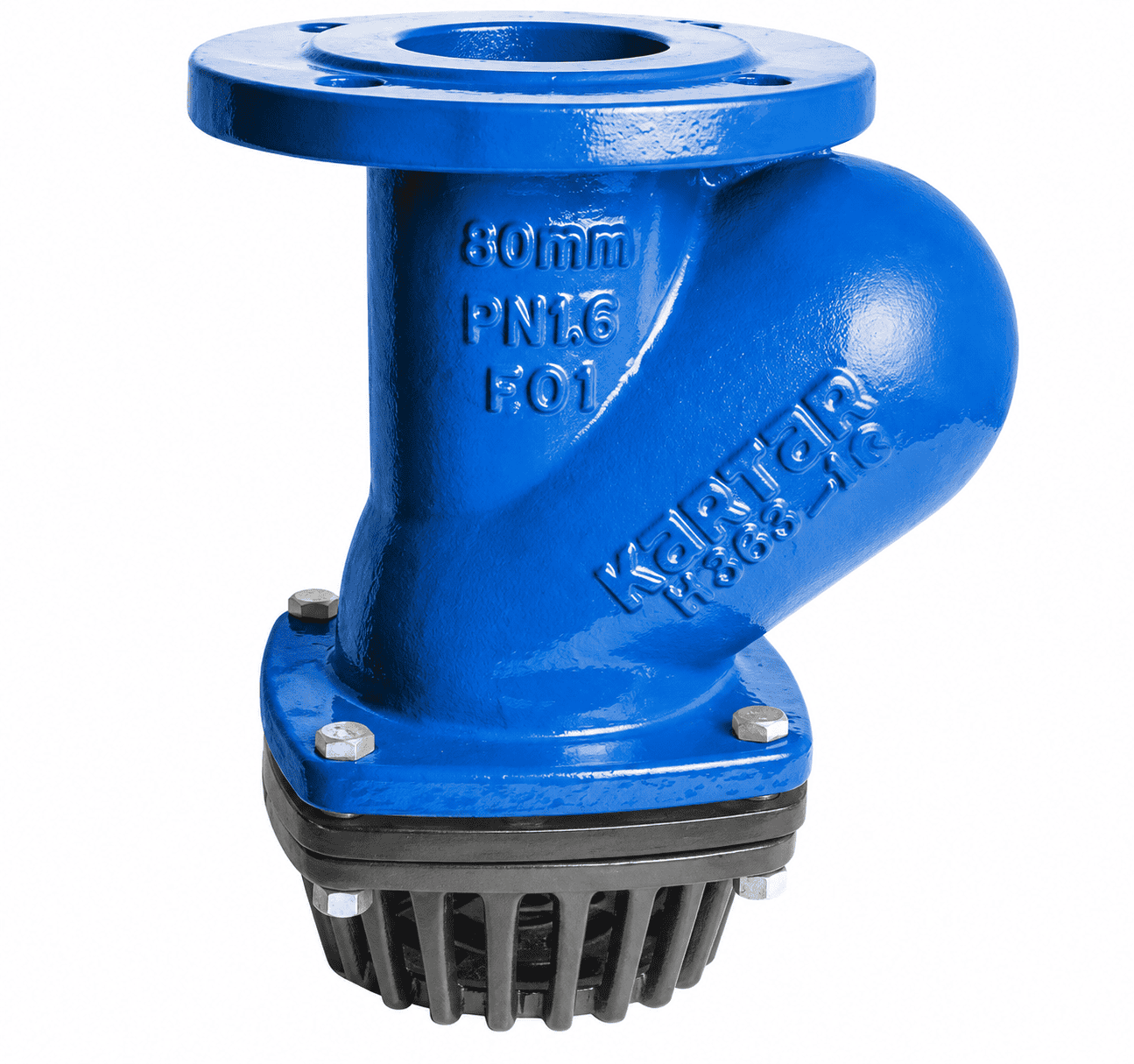

Ball Type Non-Return & Foot Valves
K520 Ball Type Non-Return Valve and K521 Ball Type Foot Valve — Ductile Iron body with a rubber-coated steel ball, designed for smooth, reliable operation on water lines and pump suction.
- PN Rating: PN 1.0, PN 1.6
- Sizes: 50mm – 200mm

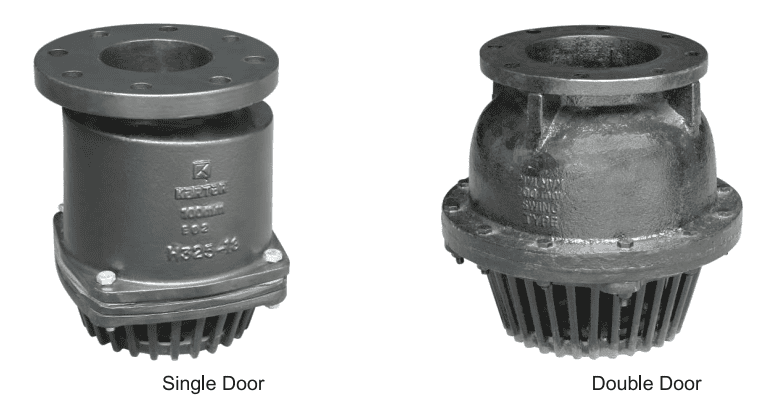

Foot Valves (Swing Type)
K518 Single Door and K519 Double Door swing-type foot valves, used in pump suction lines to prevent backflow while maintaining pump priming across industrial pumping installations.
- PN Rating: PN 0.2, PN 0.6, PN 1.0, PN 1.6
- Single Door: 50mm – 150mm | Double Door: 200mm – 300mm

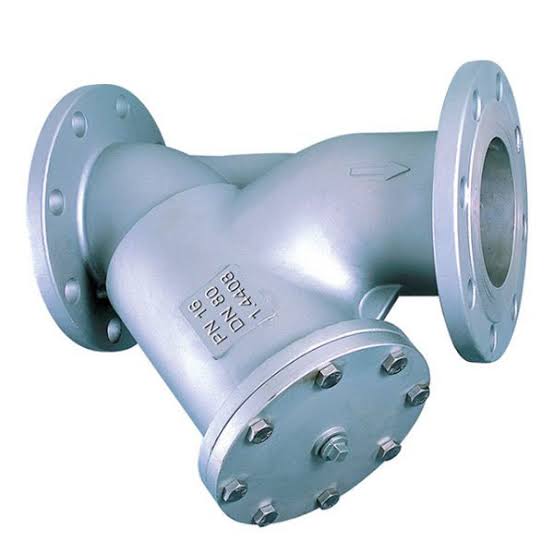

Y-Type & T-Type Strainers
Protect pumps, valves, and process equipment from unwanted particles in the pipeline. Available in flanged (K527, K527D, K528) and screwed design (K529, 15mm–100mm), with SS-304 or Brass screen.
- PN Rating: PN 1.0, PN 1.6, PN 2.0
- Y-Type: 50mm – 300mm | T-Type: 50mm – 500mm

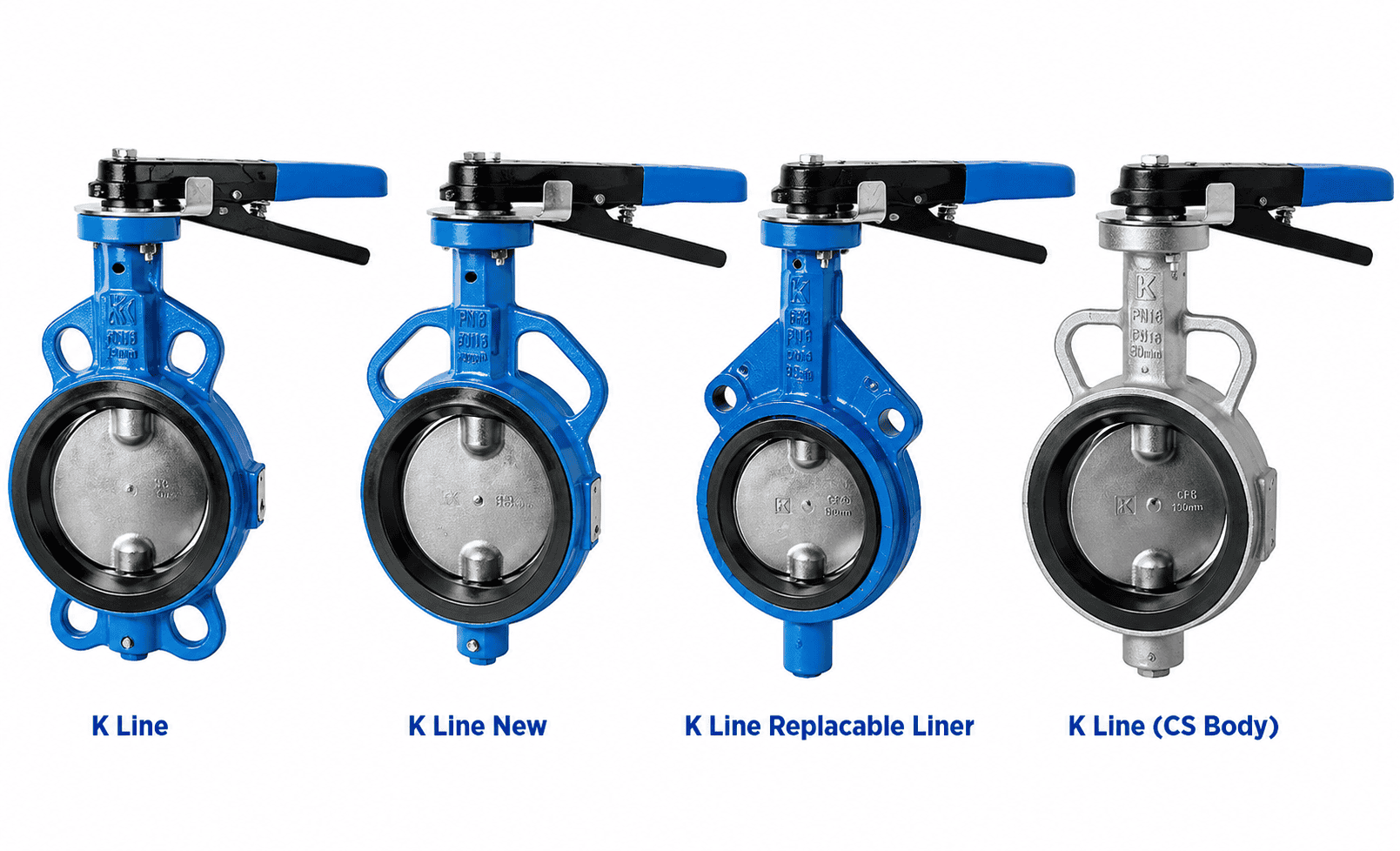

Butterfly Valves — IS:13095 (ISI + CE Marked)
Kartar’s flagship valve range — K-Line (K701/K702), K-Line New (K701N/K702N), Replaceable Liner (K703/K704), Cast Steel Body (K713), Aqualine (K706A/K707A), Slimline (K706/K707), and Double Flanged variants (K714/K715A, K716).
- Sizes: 40NB (1½″) – 600NB (24″)
- PN Rating: PN 1.0/1.6 (CI/DI); PN 1.6/2.0/Class-150 (Cast Steel)
- Liner: Nitrile / EPDM / Neoprene / Silicon

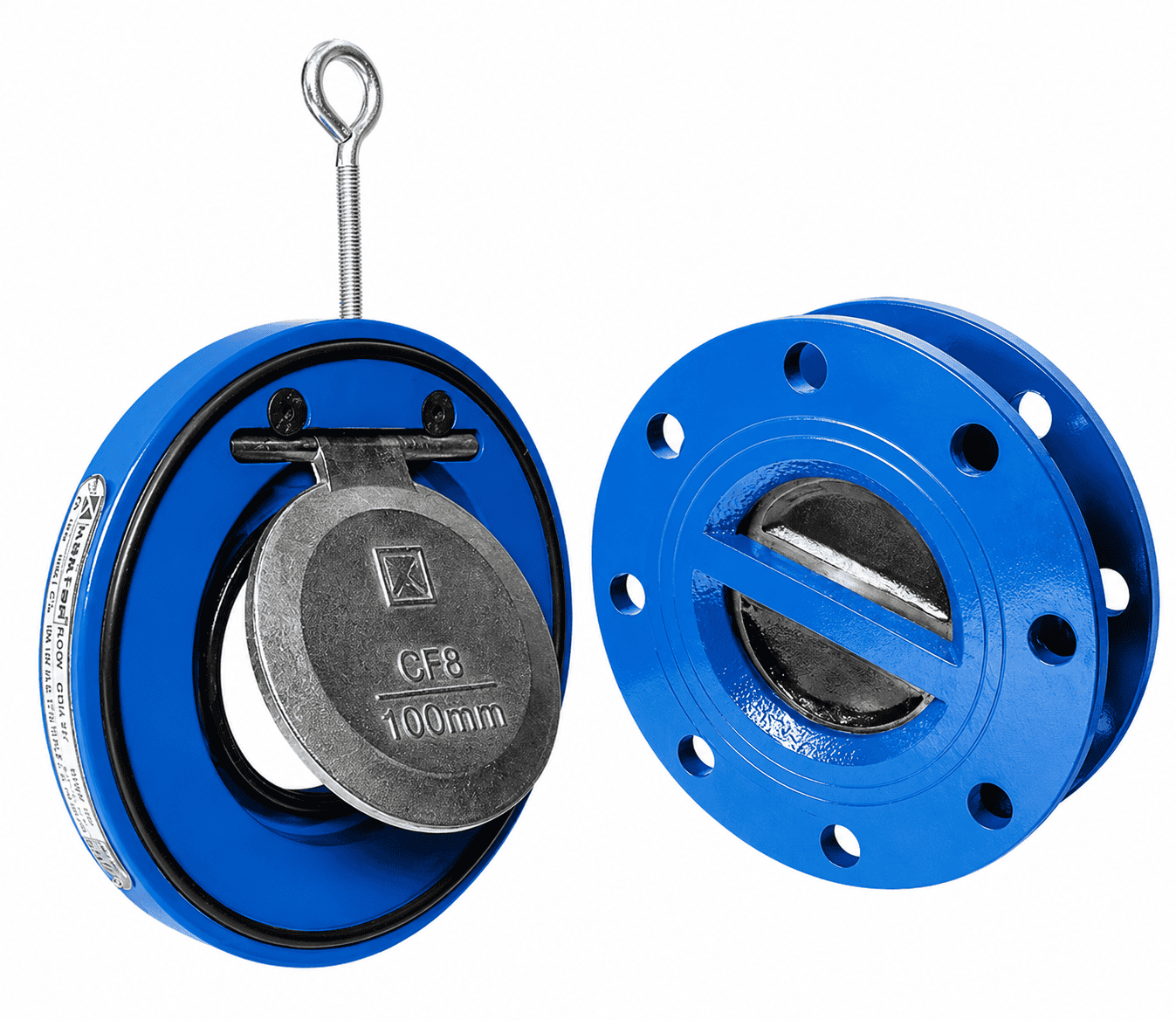

Wafer & Dual Plate Check Valves (DPCV)
K710 Wafer Check Valve — simple, economical single-disc design for vertical-pipe and gravity-flow lines. K711 Dual Plate Check Valve — faster-closing double-disc design that reduces water-hammer, ideal for pump discharge and fire-fighting mains.
- K710: 25mm – 450mm | K711: 50mm – 450mm (wafer), 50mm – 400mm (flanged)
- PN Rating: PN 1.0, PN 1.6
Why Choose Lakshmi Pipe Store for Kartar Valves?
Finding the right supplier ensures you receive original products, technical guidance, and reliable after-sales support. At Lakshmi Pipe Store, we focus on delivering premium-quality Kartar Valves that meet industry standards and deliver long-lasting performance for industrial, commercial, and residential applications.
We Offer
Genuine Kartar Valves
Competitive Wholesale Prices
Large Ready Stock
Fast Delivery Across Delhi & India
Expert Product Guidance
Bulk Order Support
Trusted Since Years
Excellent Customer Service
Our experienced team helps customers choose the right Kartar Valve according to pressure rating, pipeline size, fluid type, temperature, and industrial application. Whether you require valves for water supply, fire fighting, HVAC, chemical processing, oil & gas, or infrastructure projects, we ensure you receive the best product at the best price.
Our experienced team helps customers choose the right valve according to pressure rating, pipeline size, fluid type, and industrial application.
About Kartar Valves Pvt. Ltd. — The Manufacturer
Kartar Valves Private Limited (formerly Juneja Metal Works) is an ISO 9001 certified Indian valve manufacturer, in operation since 1972. Over five decades, Kartar has built a strong reputation for producing certified, value-engineered industrial valves that are widely used across Indian water utilities, fire-fighting installations, sugar mills, cement plants, and process industries.
Kartar’s tagline, “Controlling Fluids is our Expertise,” reflects a product range that spans sluice valves, non-return valves, foot valves, strainers, butterfly valves, and check valves — all manufactured under strict quality control with in-house material testing.
Certifications & Quality Standards
| Product | Standard | ISI Licence No. |
|---|---|---|
| Sluice (Gate) Valves | IS:14846 | CM/L-9301261 |
| Non-Return (Reflux) Valves | IS:5312 | CM/L-9157381 |
| Butterfly Valves | IS:13095 (+ CE marking) | CM/L:9440477 |
Kartar Valves Pvt. Ltd. is an ISO 9001 Company, and its butterfly valve range additionally carries CE marking for export and specification compliance. All valves are manufactured to relevant IS standards for body, disc, seat, and stem materials — details of which are listed against each product family below.
Read Also:
Best UL FM DI Fitting Supplier in Delhi
Best Zoloto Valves Supplier in Delhi
Best Pipe and Fitting Supplier in Delhi
Technical Reference: PN Rating Guide
Selecting the right pressure rating is critical for valve performance and safety:
- PN 1.0 (10 bar / 145 psi): Water mains at modest static heads, HVAC chilled-water circuits, low-rise fire-fighting risers, general irrigation duty.
- PN 1.6 (16 bar / 232 psi): The most commonly specified rating in India — general process water, mid/high-rise fire-fighting, sugar mill and cement plant utility lines.
- PN 2.0 (20 bar / 290 psi): Higher-pressure pumping installations and steam-condensate service.
- Class 150: Specified on projects engineered to ANSI/ASME standards, primarily on cast-steel-body butterfly valves (K713).
Note: 1 bar = 0.1 MPa = 14.3 psi = 1.019 kg/cm².
How to Choose the Right Kartar Valve
- Isolation duty (on/off only): Sluice valves (K501–K506) or butterfly valves (K701/K702 series) depending on space and weight constraints.
- Preventing backflow: Non-return valves (K514–K517, K517D) for horizontal lines, or foot valves (K518–K521) for pump suction protection.
- Fast-closing, pump discharge lines: Dual Plate Check Valve (K711) — reduces water hammer better than a single-plate design.
- Debris protection for pumps/valves: Y-Type (K527/K527D) or T-Type (K528) strainers.
- Tight installation space: Aqualine or Slimline butterfly valve series (K706/K706A/K707/K707A) — reduced face-to-face dimension.
- Higher temperature / steam service: K713 Cast Steel body butterfly valve.
For liner material selection on butterfly valves — Nitrile (general water/oil duty up to 80°C), EPDM (hot water/steam up to 110°C, chlorinated water — avoid with petroleum fluids), Neoprene (balanced, mixed exposure), or Silicon (high-purity/food-grade, higher temperature) — our team can guide you based on your media and operating conditions.
Download Kartar Valves Catalogue & Price List
Get complete specifications, dimension tables, and material data sheets for every Kartar valve series:
- Download Kartar Valves Catalogue PDF (upload the catalogue to your WordPress media library and link here)
- Kartar Valves Price List 2026
Industries We Serve
Lakshmi Pipe Store supplies Kartar Valves to various industries, including:
- Water Treatment Plants
- Fire Fighting Systems
- Oil & Gas Industry
- Chemical Industry
- Pharmaceutical Industry
- Food Processing Plants
- Sugar Mills
- Textile Industry
- Paper Industry
- Cement Plants
- Power Plants
- HVAC Projects
- Plumbing Contractors
- Infrastructure Projects
- Commercial Buildings
- Residential Projects
Applications of Kartar Valves
Our Kartar valves are suitable for:
- Water Distribution Systems
- Steam Lines
- Chemical Pipelines
- Industrial Fluid Control
- Compressed Air Systems
- Irrigation Networks
- Sewage Treatment Plants
- Fire Protection Systems
- Process Industries
- Manufacturing Plants
Why Original Kartar Valves Matter
Using genuine Kartar Valves offers several advantages:
- Superior Build Quality
- Leak-Proof Performance
- High Pressure Resistance
- Corrosion Resistance
- Easy Maintenance
- Longer Operational Life
- Reliable Performance
- Compliance with Industrial Standards
Bulk Supply & Wholesale Orders
Lakshmi Pipe Store supplies Kartar Valves for:
- Government Projects
- Industrial Projects
- EPC Contractors
- MEP Contractors
- Dealers & Distributors
- Builders
- Infrastructure Companies
- Manufacturing Industries
We offer competitive wholesale pricing for bulk requirements while ensuring timely delivery.
Why Customers Trust Lakshmi Pipe Store
Customers choose Lakshmi Pipe Store because of our commitment to quality, authenticity, and customer satisfaction.
Our strengths include:
- Genuine Products
- Experienced Team
- Affordable Prices
- Large Inventory
- Fast Dispatch
- Trusted Supplier in Delhi
- Technical Product Assistance
- Excellent Customer Support
FAQ
Who is the best Kartar Valves supplier in Delhi?
Lakshmi Pipe Store is a trusted Kartar valves supplier in Delhi, offering genuine ISI-certified valves, competitive wholesale pricing, expert product guidance, and fast delivery across Delhi NCR and India.
Is Kartar Valves ISI marked?
Yes. Kartar Sluice Valves conform to IS:14846 (CM/L-9301261), Non-Return Valves conform to IS:5312 (CM/L-9157381), and Butterfly Valves are ISI certified under IS:13095 (CM/L:9440477) with additional CE marking.
What sizes are available in Kartar Butterfly Valves?
Kartar Butterfly Valves are available from 40NB (1½″) up to 600NB (24″), across K-Line, K-Line New, Replaceable Liner, Cast Steel Body, Aqualine, and Slimline series.
Do you supply Kartar Valves for bulk/government projects?
Yes — we supply bulk quantities to EPC/MEP contractors, dealers, distributors, builders, and government projects with wholesale pricing and BOQ-based quotes.
What is the difference between K-Line and Aqualine/Slimline butterfly valves?
K-Line and K-Line New are standard wafer-type butterfly valves with 4-lug or 2-lug design. Aqualine and Slimline are lighter-duty variants with a reduced face-to-face dimension, suited for tight installation spaces.
What PN rating should I choose for my application?
PN 1.0 suits low-pressure water/HVAC duty, PN 1.6 is the most commonly specified rating for general process and fire-fighting applications, and PN 2.0/Class 150 is used for higher-pressure pumping and steam-condensate service. Our team can help you confirm the right rating for your project.
Which industries use Kartar Valves?
Kartar Valves are widely used across water treatment, fire-fighting, oil & gas, chemical, pharmaceutical, food processing, sugar mills, cement plants, power plants, HVAC, and infrastructure projects.
Do you deliver Kartar Valves outside Delhi?
Yes, Lakshmi Pipe Store supplies Kartar Valves across India.
What accessories are available with Kartar Sluice Valves?
Kartar Sluice Valves can be supplied with gear operation, electric actuator, locking arrangement, extension stem, position indicator, back seat arrangement, and supervisory switch — depending on the project requirement.
What is the difference between Wafer Check Valve and Dual Plate Check Valve?
The K710 Wafer Check Valve is a simpler, lower-cost single-disc design suited to vertical-pipe applications and gravity-flow lines. The K711 Dual Plate Check Valve closes faster since both half-discs shut simultaneously, reducing water-hammer pressure spikes — making it the preferred choice for pump discharge lines and fire-fighting mains downstream of a pump set.
Conclusion
If you are searching for the Best Kartar Valves Supplier in Delhi, Lakshmi Pipe Store is your trusted destination for genuine Kartar industrial valves. From butterfly valves and ball valves to gate valves, globe valves, check valves, foot valves, sluice valves, air valves, pressure reducing valves, and industrial strainers, we offer a complete range backed by expert support, competitive pricing, and dependable service. Whether your requirement is for a single valve or a large industrial project, our team is committed to delivering the right solution with quality you can rely on.
