ZOLOTO VALVES PRICE LIST

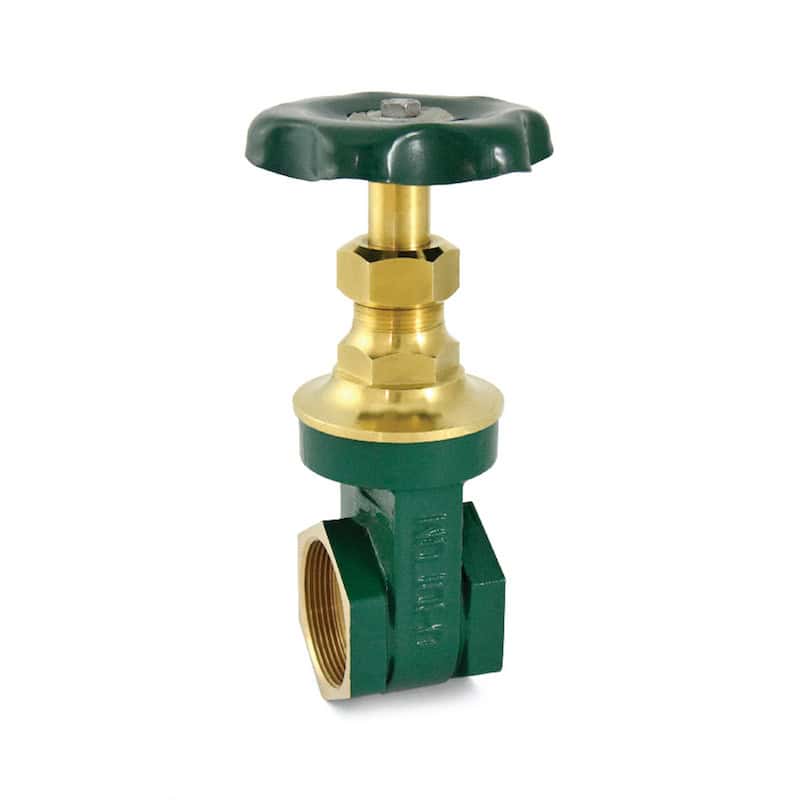

Zoloto Gate Valve — Hex Type

Screwed-end gate valve for straight-line, full-bore shutoff with minimal pressure drop when open. Hexagonal body allows easy wrench grip during installation. Used in domestic and light commercial water lines for on/off isolation.

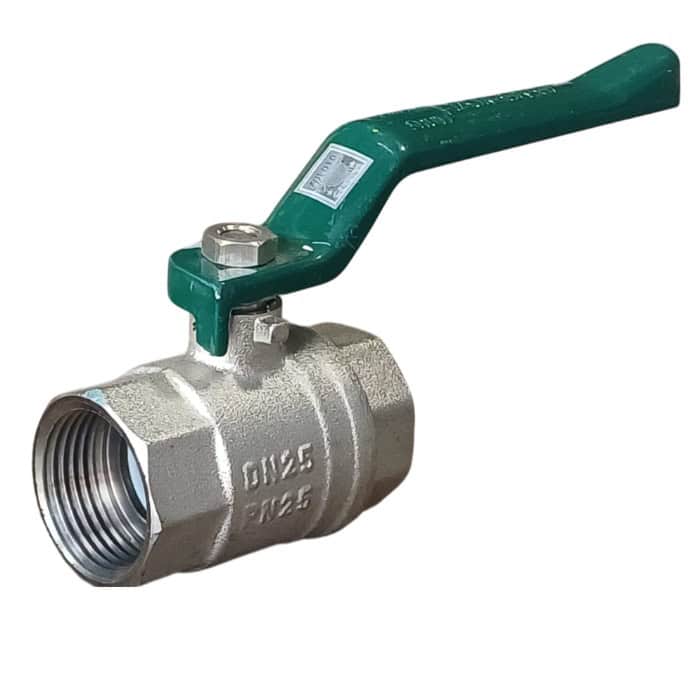

Zoloto Forged Brass Ball Valve

Quarter-turn, full-bore ball valve with screwed female ends. Forged brass body, hard-chrome-plated ball, PTFE seating for bubble-tight shutoff. Preferred for quick isolation at pump inlets, meter connections and branch lines.

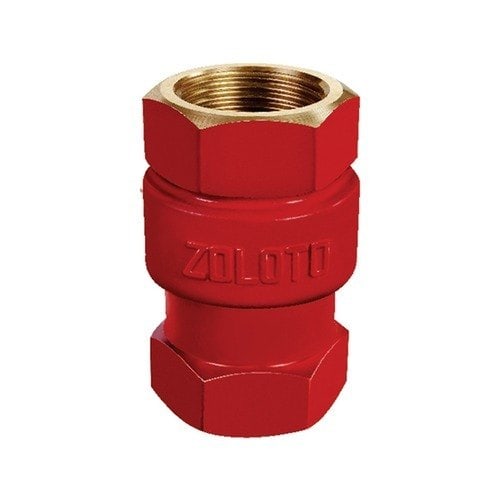

Zoloto Vertical Check Valve

Spring-loaded non-return valve built specifically for vertical pipe runs, preventing backflow when the pump stops. Standard in borewell and vertical pumping installations where a horizontal swing-check won't seat correctly.

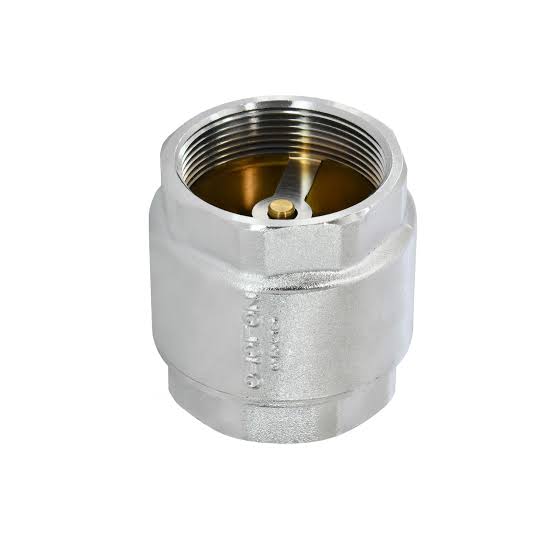

Zoloto Multi Utility Check Valve

Compact, lightweight non-return valve suited to both horizontal and vertical installation — a flexible choice when pipe orientation isn't fixed at the design stage or space is limited.

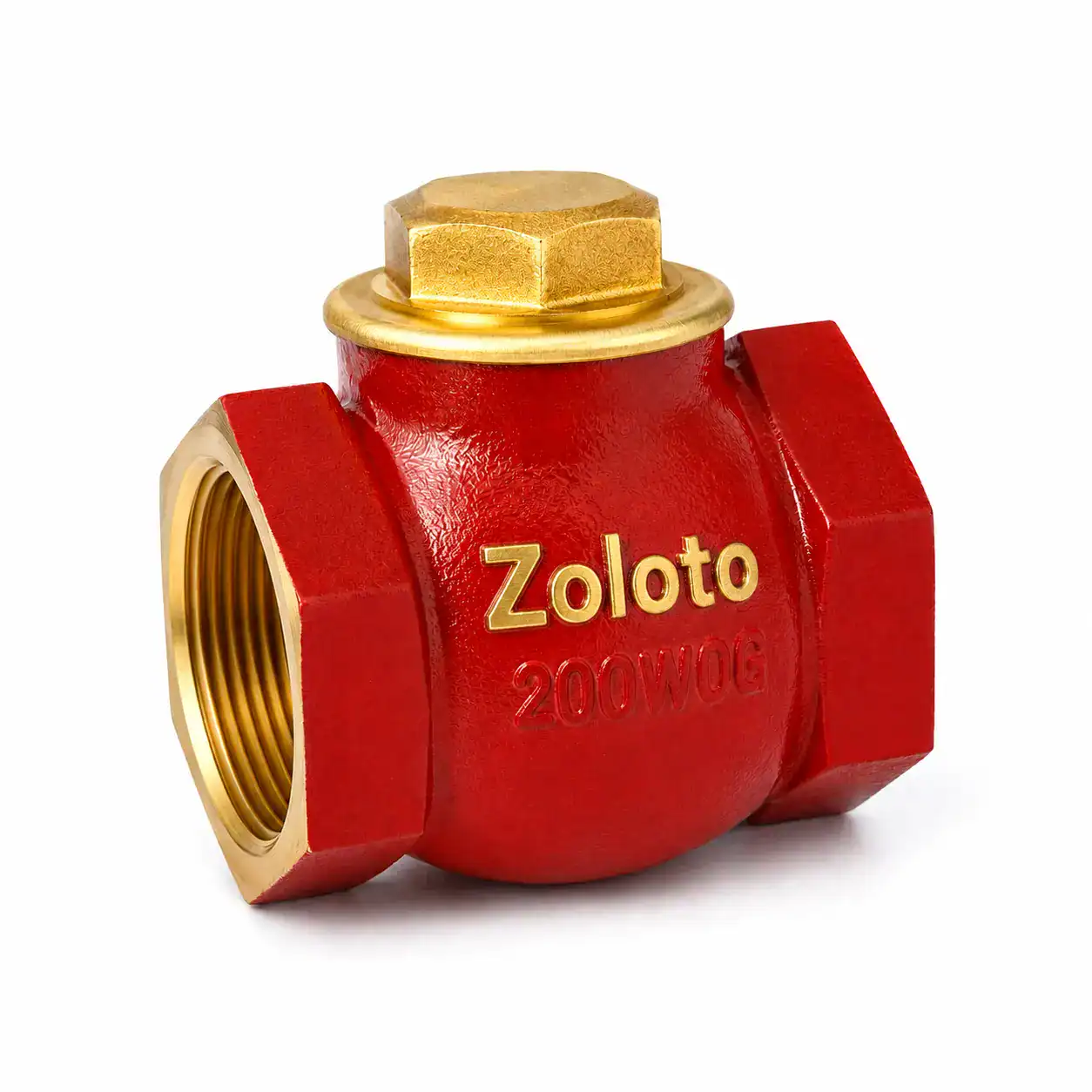

Zoloto Horizontal Check Valve

Swing-type check valve for horizontal pipelines, preventing reverse flow and protecting pumps from water hammer. Low resistance to forward flow, standard in horizontal water and fire-fighting mains.

Zoloto Gate Valve — ISI Certified

ISI-certified gate valve manufactured to IS specification, for projects needing certified material traceability — government contracts, institutional buildings and larger commercial developments.

Zoloto Compact Pressure Reducing Valve (PRV)

Regulates downstream pressure to a set value, protecting fixtures and pipework in high-rise buildings from pressure surges. 65mm–100mm supplied in bronze for higher-pressure industrial use.

*65mm–100mm supplied in bronze construction

Zoloto CI Y-Strainer — Screwed

Screwed-end strainer that filters debris and scale ahead of pumps, valves or meters. Y-pattern body allows easy screen removal for cleaning without disturbing the pipeline.

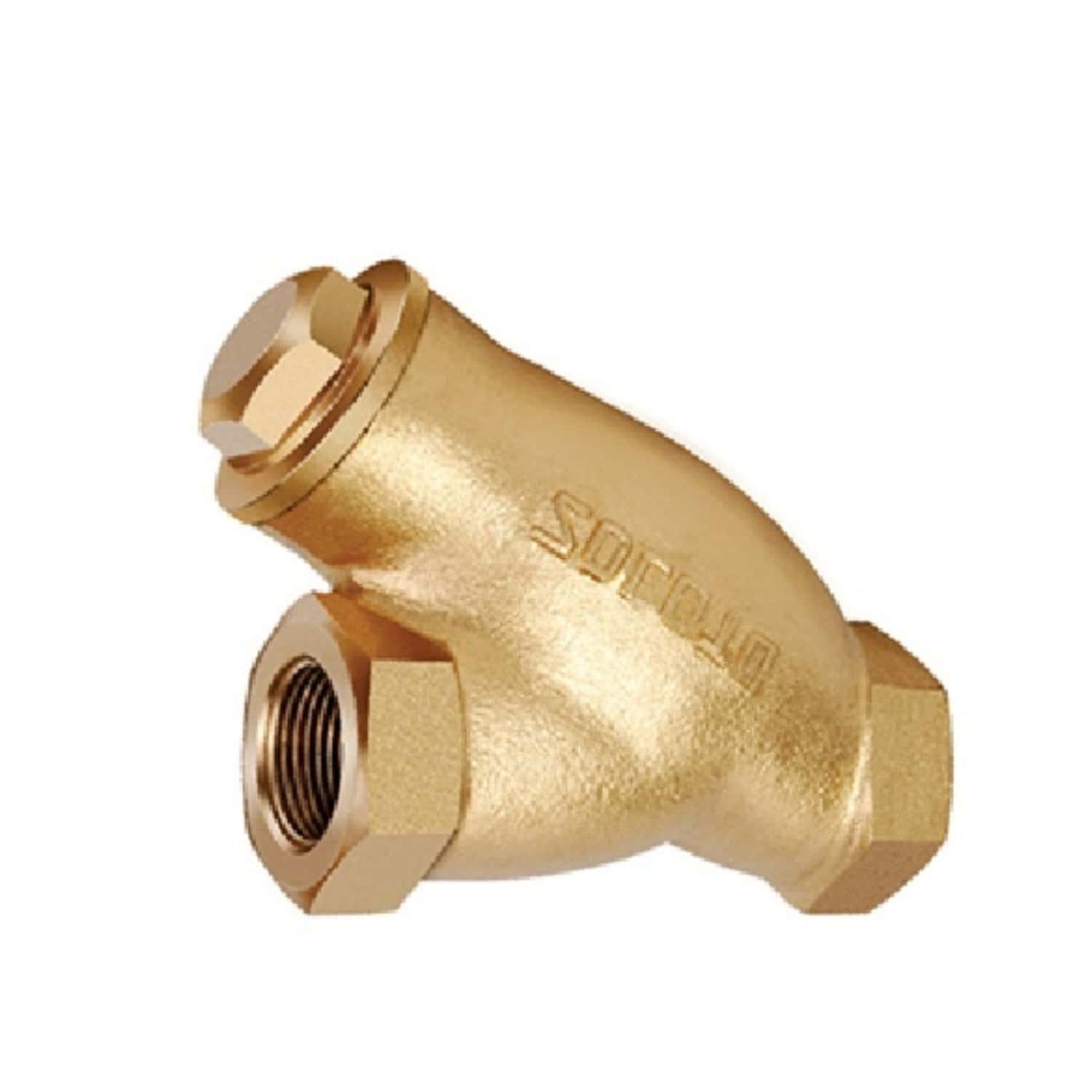

Zoloto Brass Y-Strainer

Corrosion-resistant brass-bodied strainer suited to potable water lines and RO/drinking-water systems where a cast iron body isn't acceptable.

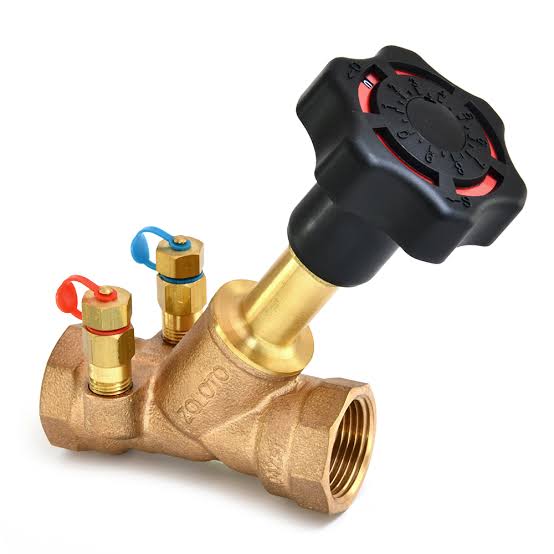

Zoloto Bronze Balancing Valve

Balances flow rates across branches of a hydronic (chilled/hot water) system, ensuring each zone gets its designed flow rather than the path of least resistance taking it all. Standard in HVAC systems in hotels and hospitals.

Zoloto Forged Brass Air Release Valve

Float-operated valve that automatically vents trapped air from the highest points of a piping system, preventing airlock and pump cavitation. Installed at high points in water mains and fire-fighting ring mains.

Zoloto SS304 3-Piece Ball Valve

Stainless-steel ball valve with a three-piece body — the centre section removes for cleaning or seat replacement without disturbing pipeline connections. Resists corrosion in chemical and food-processing applications.

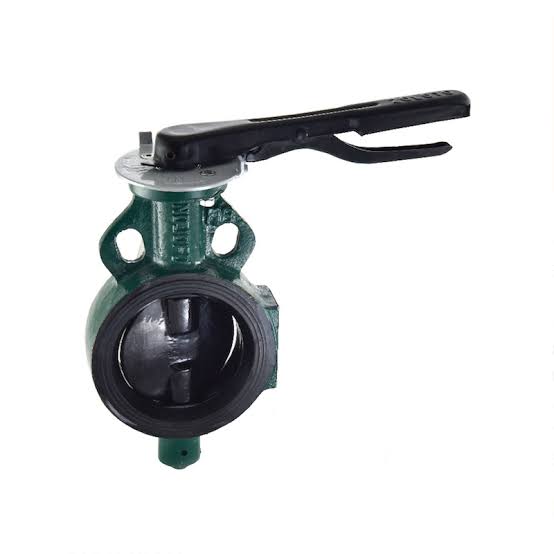

Zoloto CI Butterfly Valve — ISI PN16

Wafer-type butterfly valve to IS:13095, rated 16 kg/cm². S.G. iron body and disc with EPDM/Nitrile lining for tight shutoff and low operating torque. Standard for water mains and HVAC chilled-water circuits, 40mm–600mm.

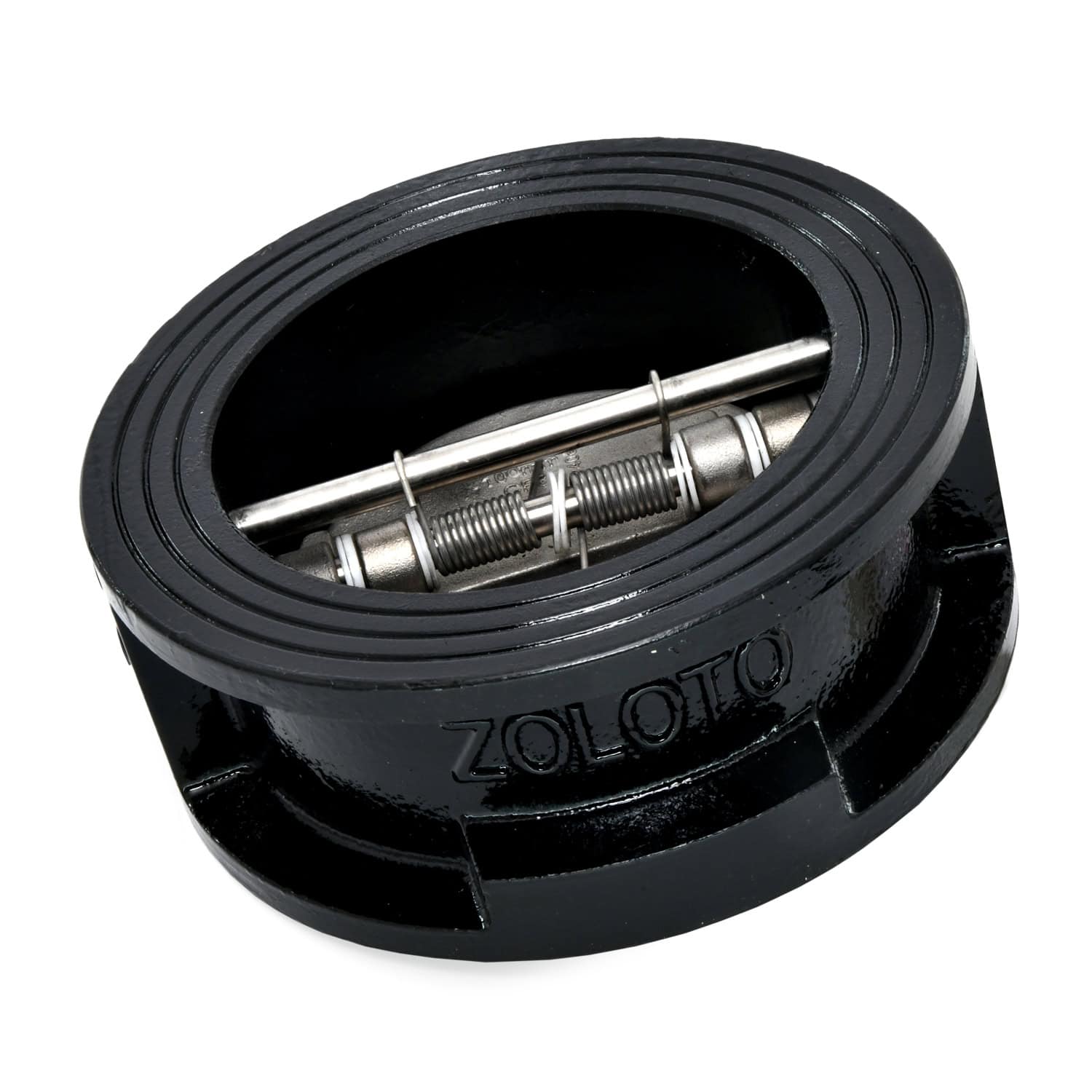

Zoloto DI Dual Plate Check Valve — PN1.6

Dual-plate, wafer-type non-return valve — compact, lighter, and faster-closing than a swing check, reducing water-hammer risk. Preferred on pump discharge lines and larger mains, 40mm–600mm.

Zoloto CI Non-Return Valve — ISI Flanged PN1.6 (Reflux Valve)

Flanged, swing-type check valve to IS:5312 with a bolted cover for easy internal maintenance and a renewable nitrile-rubber flap. Standard on pump discharge headers, 50mm–300mm.

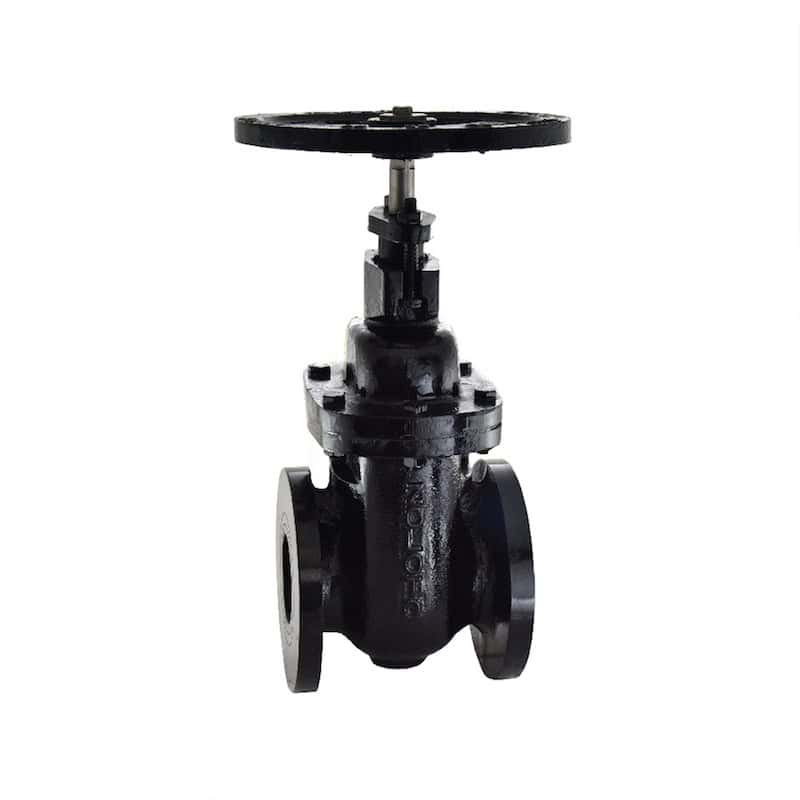

Zoloto CI Sluice Valve — ISI Flanged PN1.6

Gate-type isolation valve to IS:14846 with a non-rising stem and handwheel operation. Used for full shutoff on larger water mains and fire-fighting ring mains, 50mm–300mm. Non-rising stem needs less headroom — useful in underground chambers.

Zoloto CI Y-Strainer — Flanged PN1.0

Flanged-end counterpart to the screwed Y-strainer, sized for larger pipelines. Stainless-steel perforated screen captures debris ahead of pumps and control valves, 40mm–350mm.

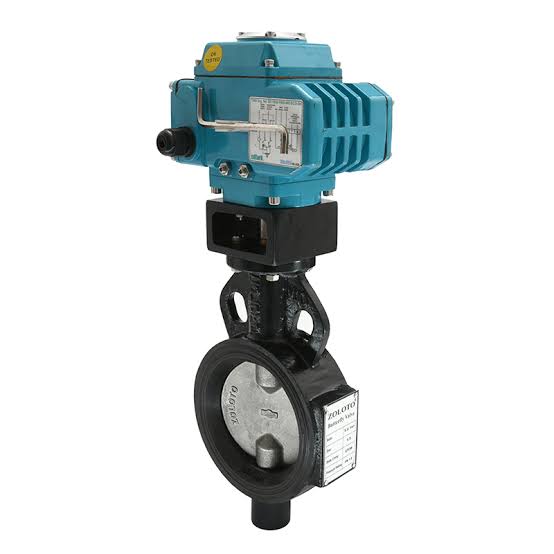

Zoloto CI Butterfly Valve — Motor Operated PN10

Motor-actuated butterfly valve for remote or automated operation — BMS-integrated HVAC systems and automated pump-house controls where manual operation of a large valve isn't practical, 40mm–350mm.

Zoloto CI Butterfly Valve — SS304 Disc PN16

Same body as the standard 1078 series but with a stainless-steel (SS304/CF8) disc for better resistance to corrosive or treated water. Specified where water quality rules out a standard iron-disc valve, 40mm–350mm.

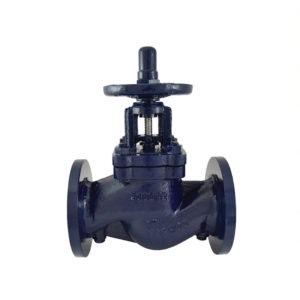

Zoloto CI Balancing Valve — PN16

Flanged, larger-diameter counterpart to the bronze balancing valve, used to regulate flow across major branches of large HVAC systems, 65mm–300mm. Essential for even flow distribution across floors or wings of a building.
